Description
Integrated 2×20 Customer Display for SKY 15S Terminals
- 2 Lines x 20 Columns

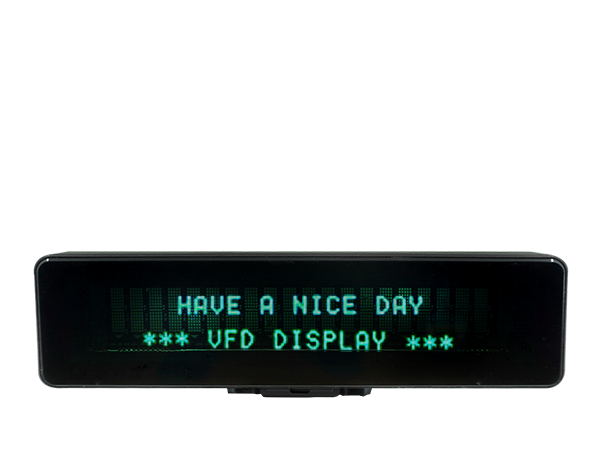

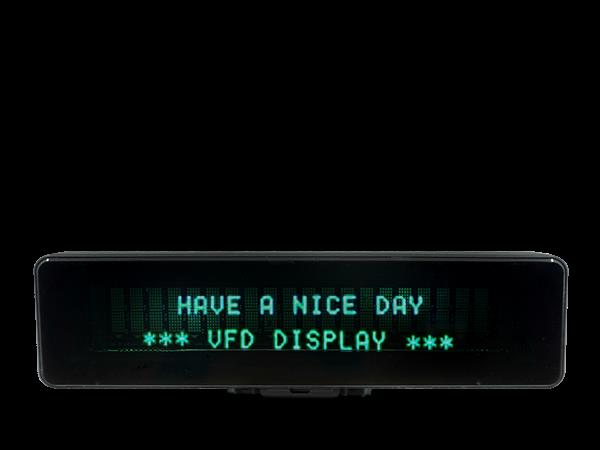

- Vacuum Fluorescent Display
- USB Interface
Model #: SKY FD230IU
HARDWARE | |
Display Method | Vacuum Fluorescent Display |
Number of Characters | 40 ( 20 columns x 2 lines) |
Brightness | 700 cd/m2 |
Character Font | 5 (H) x 7 (W) dot matrix |
Character Size | 5.25 (H) x 8.03 (W) mm |
Dot Size | 0.85 x 1.05mm |
HARDWARE | |
Viewing Angle | Max. 90º |
Horizontal Rotation | Max. 355º |
Vertical Rotation | 0º ~ 50º |
MTBF | 178w 4d |
Interface | USB |
Power Consumption | 5 ~ 12 VDC |
CONFIGURATIONS
MODEL | DESCRIPTION | |
FD230IU | Integrated 2-Lines Customer Display, USB interface |
