Description

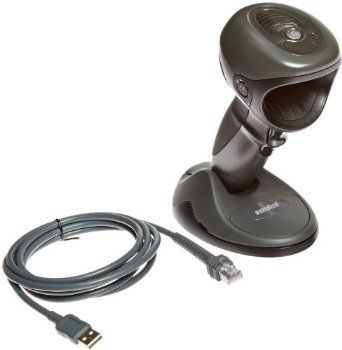

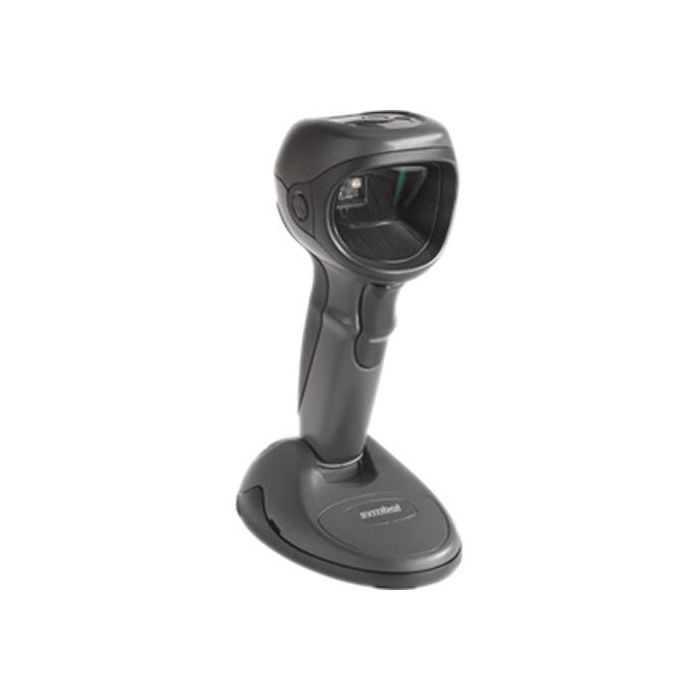

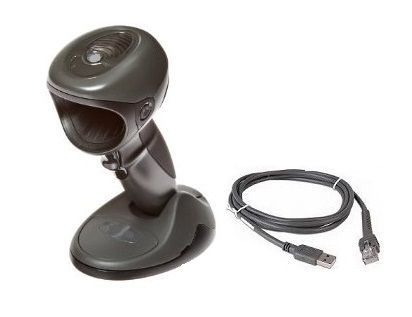

Achieve a new level of productivity and throughput at the checkout stand - with the Motorola Symbol DS9808 Barcode Scanner. Designed to deliver a new level of versatility, functionality and performance, the DS9808 features a one-of-a-kind hybrid form factor that provides superior comfort and ease of use in both handheld and hands-free scanning modes. Inside, it offers the latest scanning technology, delivering record swipe speeds for 1D and 2D bar codes, as well as the ability to capture images and signatures.
Design: Handheld, Hands-free
Features
- QR Code
- Interface
- Serial, USB
- Type
- 2D Imager
General
- Type: Barcode scanner - handheld
- Color: Twilight black
Barcode
Minimum Bar Width: 4 mil
Scan Element Type: Visible laser diode
Light Source Wave Length: 650 nm
Scan Mode: Single-pass
Scan Speed: 100 inch / sec
Frame Rate: 60 frames / sec
Skew (Degrees): 60
Pitch (Degrees): 65
TTL Decoding: Decoded
Connectivity Technology: Wired
OK Notification
Beeper, LED indicator
Features: Checkpoint Electronic Article Surveillance (EAS), deactivation of EAS tag
Miscellaneous
- Compliant Standards
- VCCI, EN55022, EN55024, ICES-003 Class B, FCC Part 15 B, RoHS, IEC 60950-1, EN 60950-1, EN 60825, IEC 60825-1
Dimensions & Weight
- Width: 3.4 in
- Depth: 5.4 in
- Height: 8 in
- Weight: 11.99 oz
